Curb Mount
For Roof Installations that Require a Curb
All our tubular skylights feature all the same quality components but with slight modifications to the flashing to accommodate various roof styles and slopes.

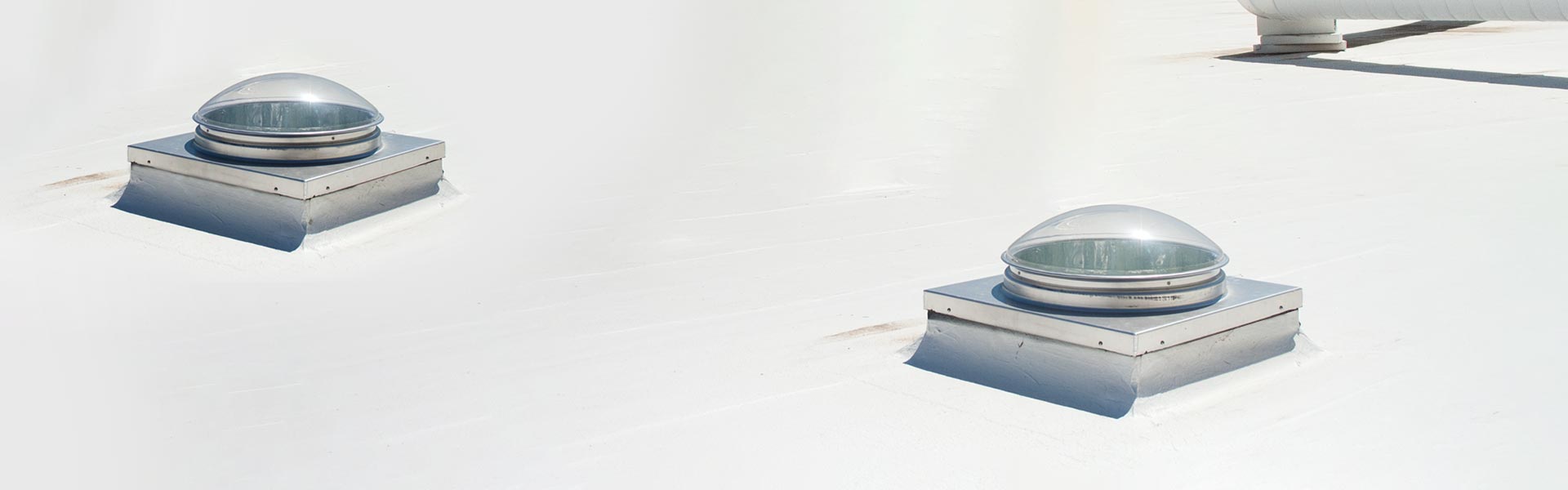

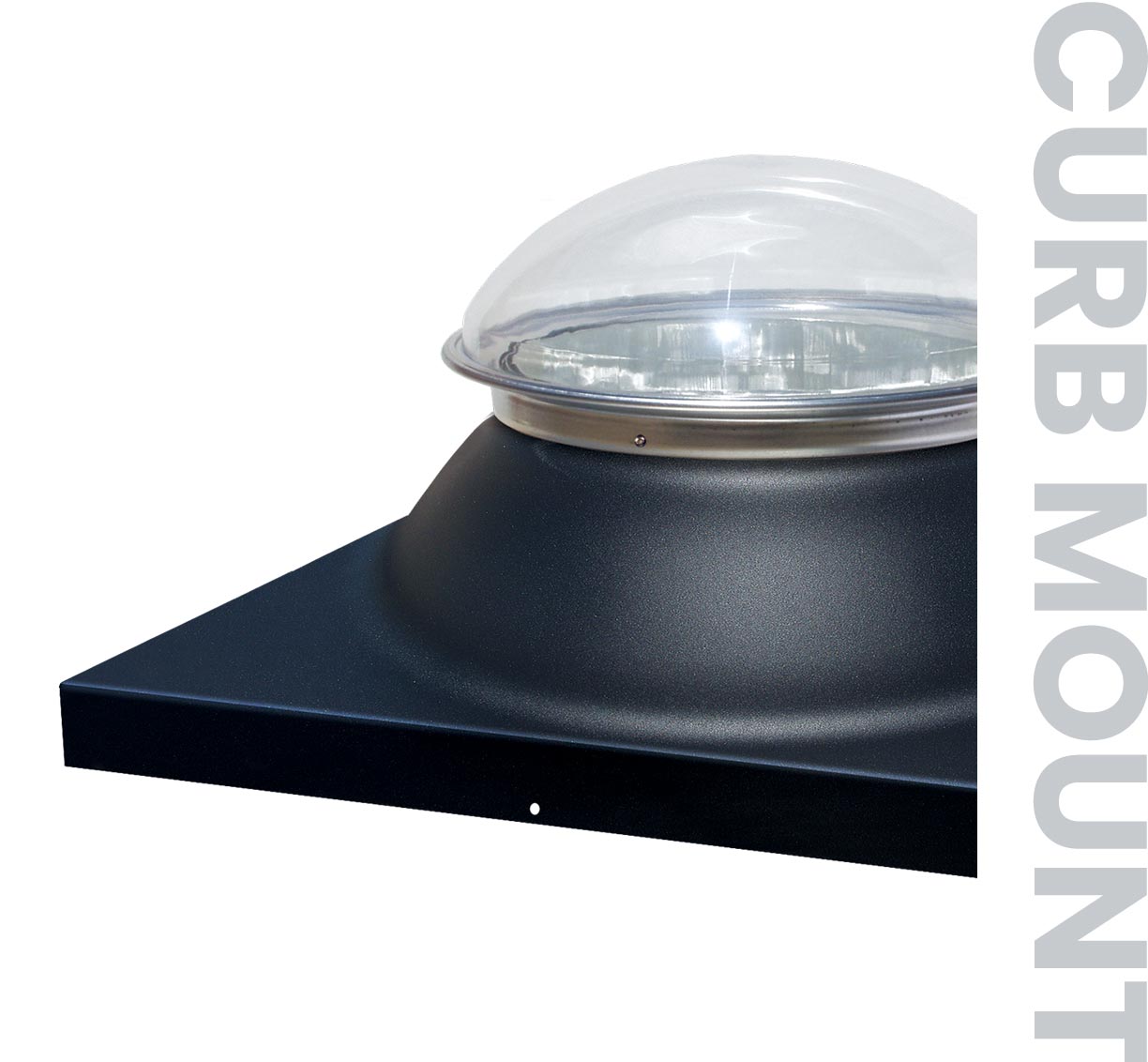

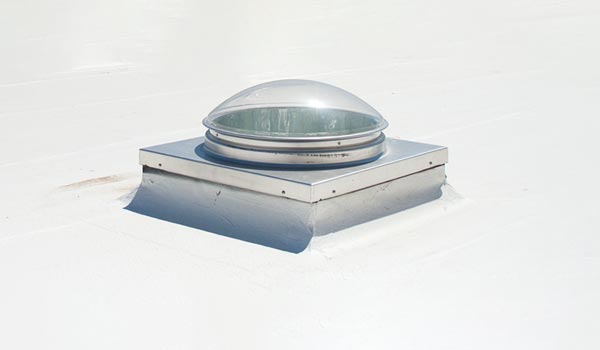

Our curb mount model features a square shaped flashing to easily install over a pre-built curb. It can be used for both residential or commercial roofs and is perfect for modified bitumen, built-up rubber membrane, vinyl and polyurethane foam roofs. The curb mount flashing is constructed of 1100 series, commercial pure grade aluminum with no seams to prevent leaks.
RESIDENTIAL OR COMMERCIAL

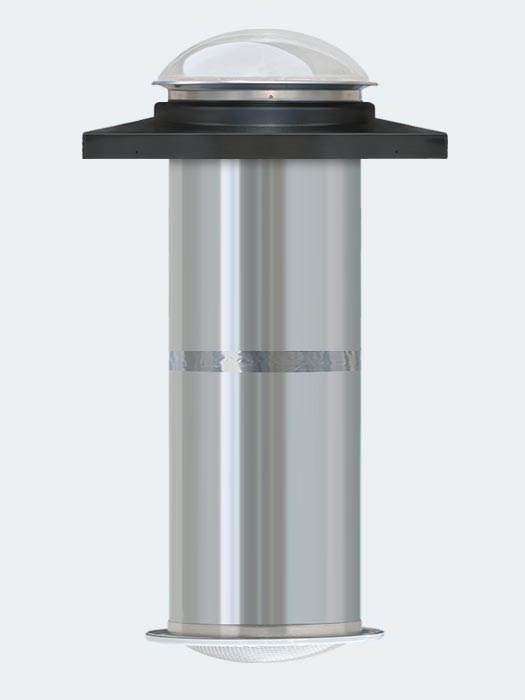

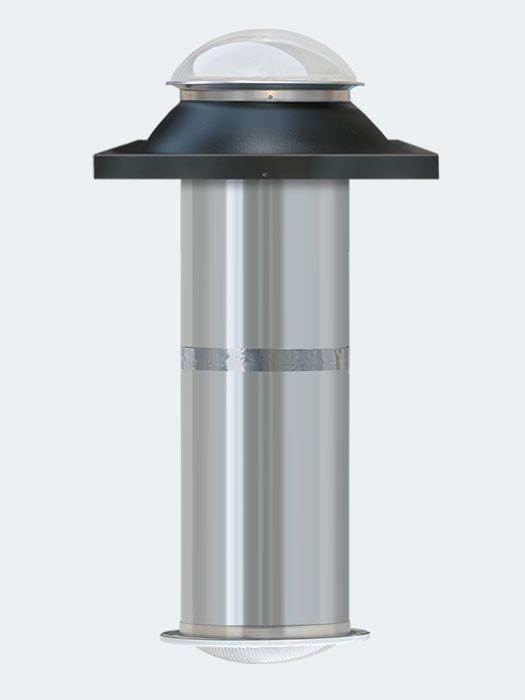

Curb Mount Tubular Skylight
10" | 13" | 18" | 21" Models
Curb Mount Model Overview
Manufactured using Quality Components more about Components
Available Accessories see Accessories
Curb Mount Model Specs
10" Kit
| Model #: | 10KFCM |
| Coverage: | up to 150 sf |
| Wattage: | up to 300 sf |
| Kit Height: | 4 feet |
| Max Length: | 18 feet |
| Installs over: | pre-built curb |
| Colors: | ⬤⬤  |
13" Kit
| Model #: | 13KFCM |
| Coverage: | up to 300 sf |
| Wattage: | up to 500 sf |
| Kit Height: | 4 feet |
| Max Length: | 20 feet |
| Installs over: | pre-built curb |
| Colors: | ⬤⬤ |
18" Kit
| Model #: | 18KFCM |
| Coverage: | up to 500 sf |
| Wattage: | up to 1,000 sf |
| Kit Height: | 4 feet |
| Max Length: | 20 feet |
| Installs over: | pre-built curb |
| Colors: | ⬤⬤ |
21" Kit
| Model #: | 21KFCM |
| Coverage: | up to 700 sf |
| Wattage: | up to 1,450 sf |
| Kit Height: | 4 feet |
| Max Length: | 20 feet |
| Installs over: | pre-built curb |
| Color: | |
EASY INSTALLATION: Natural Light tubular skylights installation requires no structural changes or wiring. Only basic DIY skills needed and can be completed in about 2 hours.

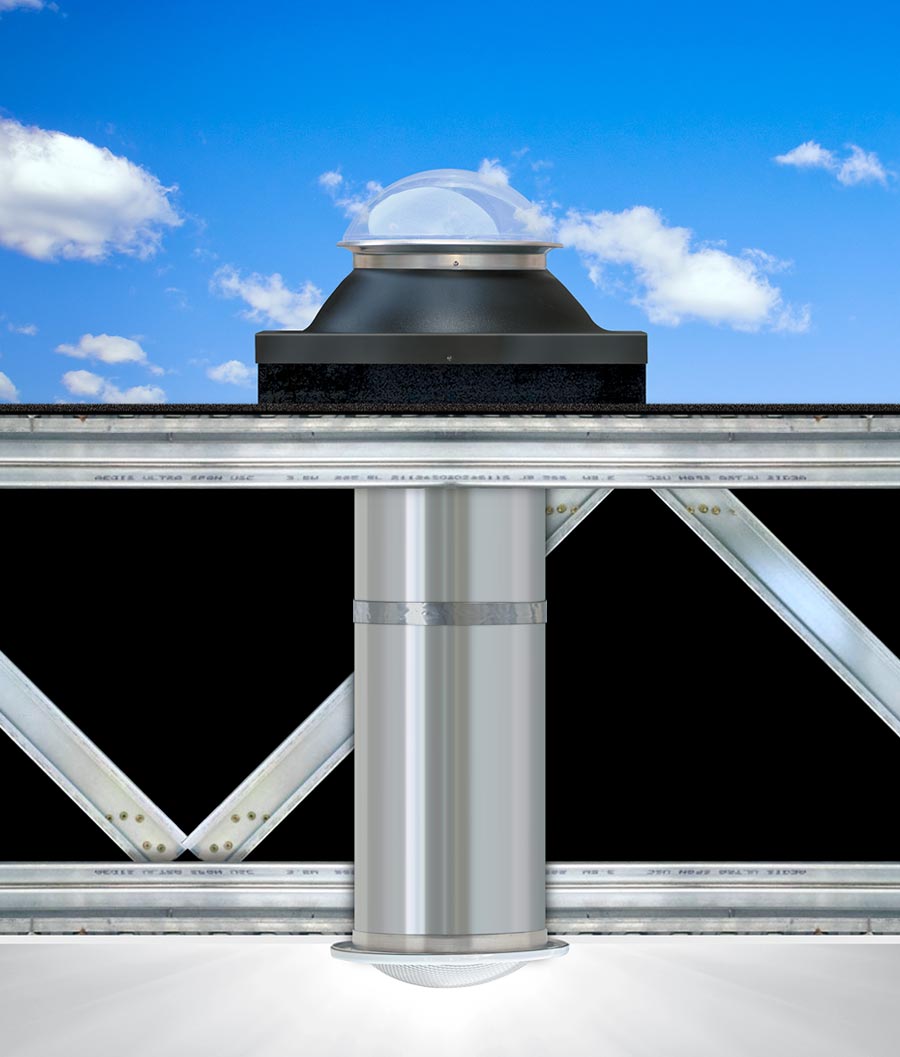

Installation Cutaway
Installation procedures vary between the curb mount, pitched and flat roof models. Pictured is a curb mount model installed over a pre-built curb showing all components and hardware. Please follow the detailed instructions for your model and roof type.
